S510 Skid-Steer Loaders
| Color | White |
| Measurement | 3597*1880*2065 mm |
| Loading Capacity | 2343Kg |
| Operating Weight | 2956Kg |
| Tipping Loading | 1485kg (ISO14397-1) |
| Rated Power | 36.5KW,158.6NM |
| Engine | KUBOTA DISEL 4 Cylinder Engine with Turbocharger |
Model: S510
Parameters
| ITEMS/NAME | DESCRIPTION | ITEMS/NAME | DESCRIPTION |
| Color | White | Cooling system | Intelligent double channel cooling system |
| Loading Capacity | 2343Kg | Hydraulic pump displacement | 64.7L/min |
| Operating weight | 2956Kg | Hydraulic pump high flow rate | 138.2L/min |
| Tipping Loading(ISO14397-1) | 1485kg | Speed（High/Low） | 11.4km/h（Low） 19.8km/h（High |
| Rated Power | 36.5KW, 158.6NM | Measurement | 3597*1880*2065 mm |
| Engine | KUBOTA DISEL 4 Cylinder Engine with Turbocharger | Maximum height when unloading distance | 185mm |
| Lift structure form | Vertical lift | To the height of the bucket pin | 3353mm |
| Hydraulic tank volume | 64.7L | Ground clearance | 0.21m |
| Fuel tank volume | 93.7L | Wheel base | 1082mm |
| Type of Cooling | Water-Cooling | System set pressure | 3500psi（241.3bar） |

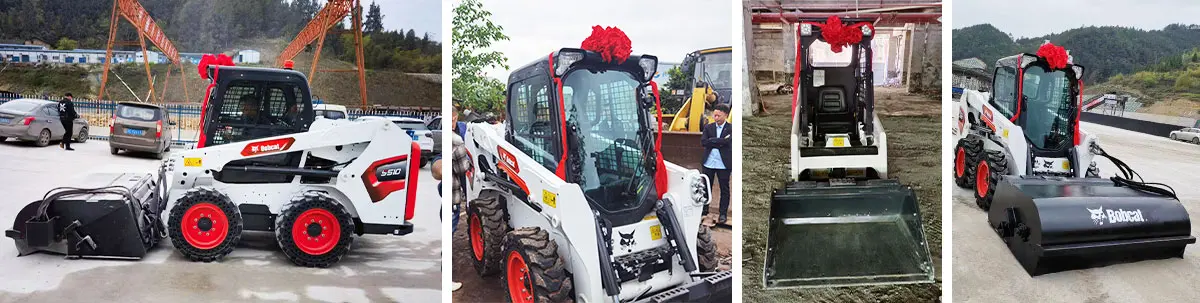

Product Display
